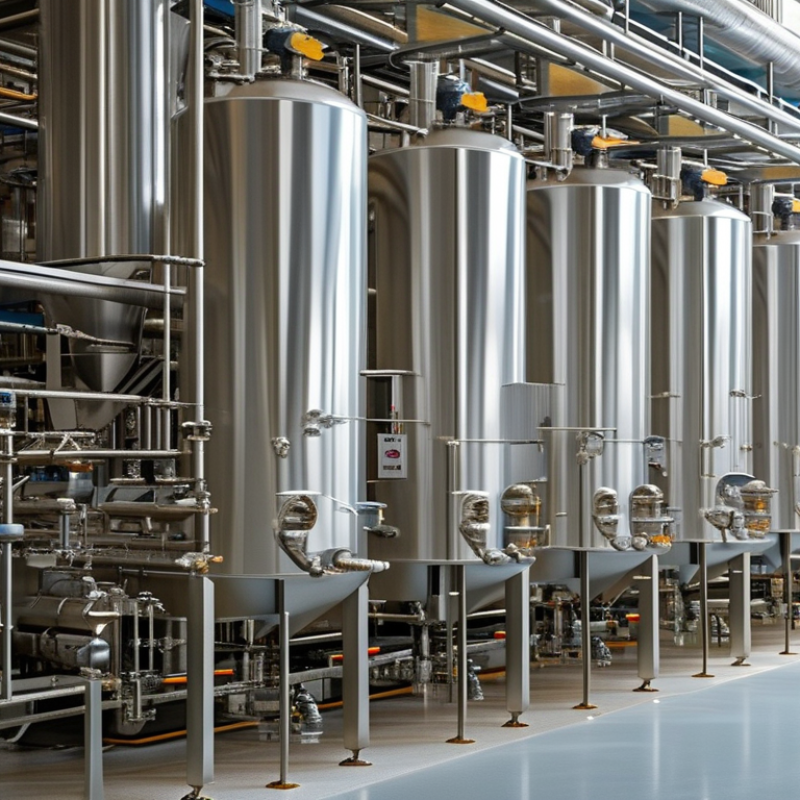

What is a vertical falling film evaporator used for?
The vertical falling film evaporator is a crucial component in industrial processes, particularly in the food and beverage, pharmaceutical, and chemical industries. According to a report by Research and Markets, the global market for evaporators is expected to reach $4.5 billion by 2027, driven by increasing demand for efficient food processing solutions.
Expert Dr. Stephen Hall, a renowned specialist in thermal technologies, states, "The vertical falling film evaporator significantly enhances concentration efficiency while minimizing energy consumption." This statement highlights the importance of this technology in achieving sustainability and cost-effectiveness in production processes.
Utilizing the vertical falling film evaporator not only streamlines operations but also reduces the environmental impact. However, some facilities struggle with maintenance challenges and operational optimization. Addressing these issues is vital for maximizing the benefits of this advanced evaporator technology.
Overview of Vertical Falling Film Evaporators
Vertical Falling Film Evaporators (VFEs) are essential in various industrial processes, particularly in the food and chemical sectors. These devices are designed to concentrate liquids by efficiently removing water through evaporation. A significant advantage of VFEs is their ability to handle heat-sensitive materials. According to a recent industry report, VFEs improve energy efficiency by up to 30% when compared to traditional evaporators.
The design includes vertical tubes, allowing a thin film of liquid to flow downwards. This configuration increases surface area contact with heating surfaces, which enhances heat transfer efficiency. With an optimal operating range of 30-100 m3/h, VFEs can adapt to diverse applications. Their use in sugar concentration, for example, has shown to produce a syrup with higher purity at lower energy consumption.
Tips: Regular maintenance is crucial for optimal performance. Ensure to monitor the temperature and pressure levels closely. A small oversight can lead to significant efficiency losses. Operators should also consider the implications of scaling in tubes. Scale build-up can hinder performance and increase costs. Being proactive in maintenance can improve the lifespan of the equipment and overall process efficiency.
Principle of Operation for Vertical Falling Film Evaporators
Vertical falling film evaporators are essential in many industries. They efficiently concentrate liquids by removing excess water. This process occurs through a thin film that flows vertically down a heated surface.
The principle of operation relies on gravity and heat. As the liquid travels down, it forms a film that maximizes surface area. This design enables rapid evaporation. Heat exchanges with the falling film, causing water to vaporize. The remaining concentrated liquid exits at the bottom.
Tips: Regular maintenance is vital. Inspect for blockages, as they can hinder performance. Make sure to monitor temperature carefully. Inconsistent temperatures may lead to uneven product quality. The system's efficiency can decline without proper checks.
What is a vertical falling film evaporator used for? - Principle of Operation for Vertical Falling Film Evaporators
| Application |
Operating Principle |
Heat Source |
Concentration Range (%) |
Advantages |
| Food and Beverage Industry |
Thin film of liquid cascades down heat transfer surfaces for efficient evaporation. |
Steam, thermal oil, or hot water. |
5% - 50% |
Low energy consumption, high evaporation rates. |
| Pharmaceuticals |
Utilizes gravity to create a falling film that enhances mass transfer and heat transfer. |
Electric heaters or steam. |
1% - 40% |
Prevents thermal degradation of heat-sensitive products. |
| Chemical Processing |
Liquid flows down vertically aligned evaporator tubes for fast evaporation. |
Thermal oil or direct steam injection. |
10% - 60% |
Compact design and easy maintenance. |
| Wastewater Treatment |
Evaporates water from wastewater to concentrate residues. |
Steam or heat exchangers. |
15% - 50% |
Reduces waste volume, environmentally friendly. |
Applications in Industrial Processes
Vertical falling film evaporators play a crucial role in various industrial processes. They are widely used in food processing, pharmaceuticals, and chemical industries. These evaporators efficiently concentrate liquids by creating a thin film that enhances heat transfer. This design allows for a quick evaporation process, which is essential for maintaining product quality.
In food processing, falling film evaporators help concentrate fruit juices, dairy products, and syrups. The gentle evaporation preserves flavors and nutrients. Similarly, in pharmaceuticals, these evaporators are critical for producing active ingredients at a high purity level. They ensure that temperature-sensitive compounds are not degraded during the process.
However, their efficiency can be affected by fouling and scaling. Regular maintenance is necessary to ensure optimal performance. Operators must monitor the evaporation rate and adjust conditions accordingly. Understanding the limitations of this technology is essential for improving its application in various industries.
Advantages of Using Vertical Falling Film Evaporators
Vertical falling film evaporators are increasingly favored in various industries. They excel in efficiently concentrating liquids by evaporation, particularly in food processing and chemical manufacturing. Their design allows for a thin film of liquid to flow down vertical tubes, maximizing surface area. This design enhances heat transfer efficiency.
One key advantage of these evaporators is their ability to handle heat-sensitive materials. Because of their rapid evaporation process, they minimize the time the liquid is exposed to heat. This is crucial in preserving the quality and integrity of sensitive solutions. Additionally, vertical falling film evaporators are known for their compact footprint, making them ideal for facilities with space constraints.
However, not all uses are perfect. Maintenance can be challenging, and scaling might occur, requiring regular cleaning. Operators need to be aware of potential issues with fouling. This can lead to decreased efficiency over time. While these systems offer many benefits, continuous monitoring is essential to maintain optimal performance.
Maintenance and Operational Considerations for Efficiency
Vertical falling film evaporators play a crucial role in various industries, particularly in the food processing and chemical sectors. Their efficiency largely depends on proper maintenance and operational practices. Regular inspection of the evaporation surfaces is essential. Any fouling or scaling can impede heat transfer and reduce performance. Keeping these surfaces clean can enhance efficiency significantly.
Another consideration is the temperature control of the feed liquid. Fluctuations in temperature can lead to inefficient evaporation. It is advisable to maintain a consistent temperature throughout the system. Monitoring pressure levels is also critical. This ensures optimal vapor flow and minimizes energy consumption. However, not all operators may have the experience or resources to implement these checks consistently.
Training staff on best practices is vital, but often overlooked. Without proper knowledge, even the best systems can underperform. Regularly scheduled maintenance can become a lost priority in busy facilities, which is a pitfall. An efficient system is a reflection of both the technology and the people operating it. Striving for both reliability and performance should always be the goal.
