China Top White Film Evaporator Manufacturers

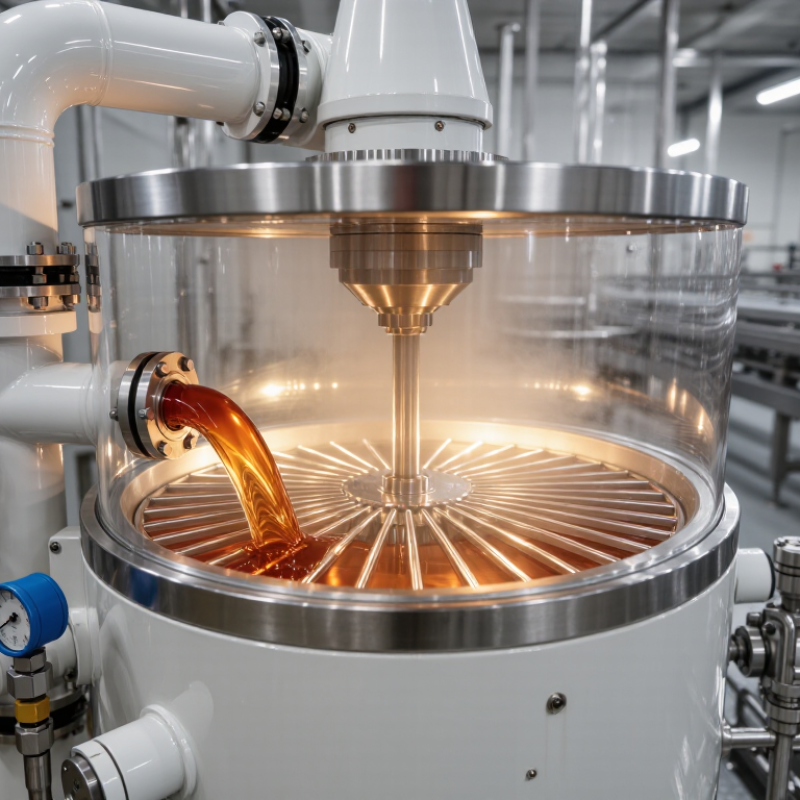

China’s white film evaporator manufacturers serve industries that need gentle, efficient concentration of heat-sensitive liquids. These systems spread a thin product film across a heated surface, supporting rapid evaporation and shorter exposure to heat. Picture a viscous extract moving through a polished chamber while vapour leaves through a separate outlet. Small design details matter: feed consistency, rotor clearance, vacuum stability, and cleanability can shape real-world performance.

Energy use also deserves attention. The International Energy Agency’s Energy Efficiency 2023 report estimates that industry accounts for about 37% of global final energy consumption. That figure is not specific to evaporators, and public reports do not consistently isolate the white film evaporator market. Buyers should therefore compare documented operating data, not broad market claims. Ask manufacturers for verified evaporation capacity, product temperature, materials, test conditions, and references from comparable processes. A catalogue value alone is not enough.

One limitation matters here: without a traceable source, a quotation from a named white film evaporator expert cannot be verified responsibly. That gap should be acknowledged, not filled with an invented endorsement. Manufacturer comparisons are most useful when they connect engineering claims to test records, service capability, and the buyer’s actual feed. The best fit may not be the largest unit. Sometimes the overlooked detail is fouling after a long production run.

China Top White Film Evaporator Manufacturers
Table of Contents [Hide]
1 White Film Evaporators: Definition, Purpose, and Core Components
2 How White Film Evaporators Work in Industrial Processes
3 China’s White Film Evaporator Manufacturing Landscape
4 Key Applications and Technical Capabilities of Chinese Manufacturers
5 How to Evaluate and Select a White Film Evaporator Manufacturer

White Film Evaporators: Definition, Purpose, and Core Components

A white film evaporator forms a thin liquid layer over a heated surface so volatile components can evaporate quickly. The term is sometimes used for thin-film or wiped-film equipment, but terminology varies between suppliers. Its purpose is to concentrate heat-sensitive, viscous, or high-boiling liquids while limiting their exposure to heat. Short residence time matters. For example, a viscous feed entering the unit may spread across a warm cylindrical wall, while vapor separates and exits through the upper outlet. The remaining concentrate leaves through the bottom.

Core components usually include a heated vessel, rotor or distribution system, drive, vapor outlet, condenser, and product discharge. Some designs use wipers to renew the liquid film and reduce stagnant zones. Temperature, pressure, rotor speed, and feed rate affect performance; they must be matched to the fluid and process.

The U.S. Department of Energy’s 2017 Bandwidth Study reports that process heating accounts for about 51% of U.S. manufacturing energy use.

That figure is not specific to evaporators, but it underscores why heat-transfer efficiency and insulation deserve attention. One limitation: a thin film does not guarantee gentle processing if temperatures or residence times are poorly controlled. Buyers should verify test conditions and actual product results, not rely on equipment labels alone.

How White Film Evaporators Work in Industrial Processes

A white film evaporator processes liquid by spreading the feed into a thin layer over a heated surface. In a typical unit, a distributor guides incoming material across the wall while rotating blades help keep the film even. Heat passes through the vessel wall, causing part of the liquid to vaporize. The vapor moves to a separator or condenser, while the concentrated product leaves through a separate outlet.

Many systems operate under vacuum. Lower pressure can reduce the temperature needed for evaporation, which may help protect heat-sensitive ingredients. Short residence time is another practical advantage. That matters. It can limit prolonged heating, though actual product quality still depends on temperature, feed rate, and equipment settings. A thick or uneven film may reduce heat transfer and leave deposits behind.

Operators monitor the product, not just the control panel. Changes in viscosity, color, or flow can signal that the process needs adjustment. Cleaning access also deserves attention, especially when materials cling to blades or vessel walls. No evaporator suits every feed. Pilot testing can reveal problems that calculations miss, and that is easy to overlook when production schedules are tight.

China’s White Film Evaporator Manufacturing Landscape

China’s white film evaporator manufacturing landscape combines equipment fabricators, component suppliers, and process engineering teams. Many projects begin with a practical question: how evenly can a thin liquid film spread across a heated surface? That detail affects heat transfer, product quality, and cleaning requirements.

Manufacturers may tailor vessel dimensions, heating areas, seals, and control systems to a customer’s material and production conditions. Stainless steel selection, weld finishing, and surface inspection deserve close attention. Small defects matter. During evaluation, buyers can request material records, fabrication drawings, pressure-test results, and a witnessed water trial. These checks make supplier claims easier to assess.

Capabilities are not uniform across the market. Some workshops focus on fabrication, while others provide process calculations and commissioning support. The distinction can be easy to miss in a short quotation. Ask how the supplier handles viscous feed, temperature-sensitive products, and changes in operating load. A site visit may reveal details that polished documents do not. Still, one visit cannot prove long-term reliability; operating references and maintenance planning matter too. The landscape is broad, but careful technical questions help separate a suitable machine from a merely attractive specification.

China Top White Film Evaporator Manufacturers - China’s White Film Evaporator Manufacturing Landscape

A technology-focused overview of thin-film evaporator equipment and common manufacturing considerations, without company or brand listings.

Equipment Category How the Film Is Formed Typical Process Characteristics Common Applications Key Manufacturing and Selection Considerations
Wiped-Film Evaporator Rotating wipers spread and renew a liquid film across the heated inner wall. Designed for rapid heat transfer and short product exposure; vacuum operation may be used when a lower boiling temperature is needed. Concentration of viscous, heat-sensitive, or fouling-prone liquids; recovery of solvents and purification of specialty chemicals. Wiper design, rotor balance, clearance, sealing, and the finish of product-contact surfaces affect operation and maintenance. Material selection depends on product chemistry and process requirements.
Short-Path (Molecular) Evaporator A thin film is formed on a heated surface, with an internal condenser positioned close to the evaporation surface. Used at very low pressures to support evaporation at reduced temperatures; suited to compounds that are difficult to separate without prolonged heating. Purification or concentration of high-boiling, temperature-sensitive materials, including selected oils, chemical intermediates, and specialty products. Condenser placement, vacuum-system design, leak-tight construction, and temperature control are important. Suitability depends on volatility, viscosity, and the thermal stability of the feed.
Falling-Film Evaporator Liquid flows downward as a film along heated tubes or plates, commonly assisted by gravity. Provides continuous evaporation with relatively short liquid residence when correctly designed and operated; often used where heat-sensitive liquids must be concentrated. Concentration of aqueous solutions and other relatively free-flowing liquids in food, chemical, and related process industries. Uniform liquid distribution, tube or plate configuration, feed properties, and cleaning access influence performance. Feed viscosity and fouling tendency should be evaluated during equipment selection.
Rising-Film Evaporator Vapor generated inside heated vertical tubes helps lift the liquid and form an upward-moving film. Relies on vapor formation and circulation within the heating tubes; performance is affected by feed rate, boiling behavior, and liquid properties. Evaporation of suitable low- to moderate-viscosity liquids in continuous processing applications. Tube geometry, feed distribution, and operating stability need to match the process. It is generally less suitable for feeds that are highly viscous or prone to severe fouling.
Materials of Construction Product-contact parts are selected according to the process fluid and service conditions. Common choices include stainless steel grades such as 304 and 316L; more corrosion-resistant alloys or other materials may be specified where required. Used across chemical, pharmaceutical, food, and other process sectors, subject to compatibility and applicable hygiene requirements. Material grade, corrosion compatibility, surface finish, weld quality, and documentation should be confirmed against the process specification rather than assumed from the equipment category.
Heating and Vacuum Systems Heating media supply energy to the evaporator surface; a vacuum system may reduce the boiling temperature. Heating media and pressure conditions are selected for the product, desired evaporation duty, and equipment design. No single operating temperature or vacuum level applies to every installation. Processes requiring controlled evaporation, including operations involving heat-sensitive or high-boiling materials. Review heat-transfer area, utility availability, condenser duty, vacuum-pump selection, seals, and process-control requirements as an integrated system.
Quality and Compliance Documentation Manufacturing and inspection practices are defined by the order specification and destination-market requirements. Documentation may include material certificates, inspection records, pressure-related documents where applicable, and surface-finish information. Relevant to projects requiring traceability, hygienic design, or compliance with specified local and international requirements. Confirm the applicable codes, inspection scope, design conditions, and required records in the purchase specification. Requirements vary by equipment design and jurisdiction.

Note: “White film evaporator” is often used informally for thin-film evaporation equipment. The categories and process descriptions above are general engineering guidance, not a ranking, market-share estimate, or survey of manufacturers in China. Actual performance and suitable operating conditions depend on the feed, product targets, equipment design, and process validation.

Key Applications and Technical Capabilities of Chinese Manufacturers

Chinese manufacturers of wiped-film evaporators serve food, pharmaceutical, and specialty-chemical processors. Typical duties include concentrating heat-sensitive extracts, recovering solvents, and removing residual moisture from viscous liquids. In food processing, evaporation can reduce water content before storage or further production. UNEP’s Food Waste Index Report 2024 estimates that 1.05 billion tonnes of food were wasted in 2022, equal to 19% of food available to consumers. That figure is not an evaporator performance measure, but it highlights the importance of reliable processing and storage.

Technical capability depends on more than heating area. Buyers should check rotor design, vacuum stability, seal materials, surface finish, and whether the unit handles the actual feed’s viscosity and solids. A short residence time helps protect some heat-sensitive compounds. Small details matter. For example, a poorly sized condenser can limit evaporation even when the heating system is adequate. The IEA’s Energy Efficiency 2023 report puts industry at about 37% of global final energy consumption, making heat recovery and operating efficiency relevant evaluation points. Yet these results depend on feed conditions and plant layout; catalog figures alone are not enough. Request test data using a representative sample, and verify cleaning access, control accuracy, and continuous-run performance before specifying a production system.

China's White-Film Evaporator Manufacturers: Key Applications & Technical Capabilities

Vacuum evaporation lowers the boiling temperature, helping process heat-sensitive materials. This chart shows the saturation temperature of water at selected absolute pressures—a thermodynamic reference relevant to evaporator design, not manufacturer-specific performance data. White-film evaporators are used in applications such as food concentration, pharmaceutical processing, and chemical purification; actual operating conditions depend on the product and equipment design.

How to Evaluate and Select a White Film Evaporator Manufacturer

A white film evaporator’s performance depends on how well its design matches the actual feed, not just its rated capacity. Share the material’s viscosity, solids content, heat sensitivity, and expected throughput with each manufacturer. Ask how they determine film thickness, rotor speed, heating area, and operating pressure. Small details matter.

Review the wetted-part materials, seal design, surface finish, and access for cleaning. Request process drawings, utility requirements, and documented test results using a similar feed. If possible, observe a trial and check the temperature, pressure, flow rate, and product condition during steady operation. A short test may reveal fouling or uneven distribution that a brochure will not.

Compare commissioning support, spare-part availability, and operator training, as well as purchase price. Ask what performance can be verified at acceptance and how deviations are handled. I would not assume the largest heating area is always best; higher capacity can bring higher energy use or more cleaning work. Some feed properties are hard to reproduce in a factory trial, so record any differences before committing to a design.
