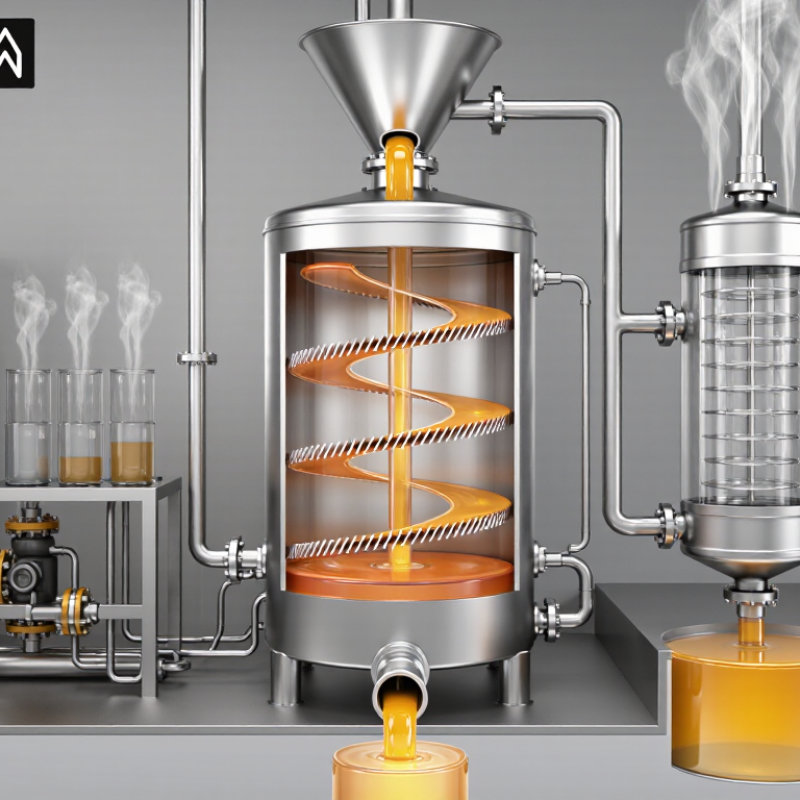

What Is a Pope Wiped Film Evaporator?

A pope wiped film evaporator is a specialized thermal separation system for heat-sensitive, viscous, or high-boiling materials. It uses a rotating wiper assembly to spread liquid into a thin film along a heated cylindrical wall. This design increases surface area and shortens residence time. The result can be gentler evaporation than conventional batch equipment.

John Pope, a recognized specialist associated with Pope Scientific, describes the operating principle simply: “A thin, rapidly moving film gives the product less time to experience heat.” That sentence captures the machine’s central advantage. Feed enters near the top, while rotating blades distribute it across the heated surface. Vapors move toward the condenser, and concentrated liquid exits separately. Watching the process, an operator may see a smooth amber film, not a violently boiling pool.

The equipment is not a universal solution. Product viscosity, feed rate, vacuum level, wall temperature, and blade clearance all influence performance. Small changes can affect color, purity, or final moisture. The details matter. A well-designed pope wiped film evaporator can support efficient concentration, purification, and solvent removal in demanding processing environments. Yet equipment selection should follow pilot testing, material data, and documented process goals. That practical step is often underestimated. Manufacturers may publish impressive capacity figures, but real performance depends on the actual feed. Fouling, foaming, and thermal sensitivity still require careful engineering. In other words, the technology is powerful, but not automatic. Its value appears when mechanical design and process control work together.

What Is a Pope Wiped Film Evaporator?
Table of Contents [Hide]
1 Wiped Film Evaporator: Definition, Purpose, and Operating Principle
2 Thin-Film Formation at 0.1–3 mm Thickness Under Controlled Wiping
3 Core Components: Heated Shells, Rotors, Wipers, and Vacuum Systems
4 Process Performance: 1–100 mbar Vacuum and 1–30 s Residence Time
5 Industrial Applications, Material Selection, and Scale-Up by Heating Area

Wiped Film Evaporator: Definition, Purpose, and Operating Principle

A wiped film evaporator is a process vessel that separates volatile components from heat-sensitive liquids. Inside its heated body, rotating blades spread the feed into a thin, moving film. This large surface area supports rapid evaporation with limited residence time. The vapor rises toward a condenser, while the concentrated liquid leaves through a separate outlet. It is a practical design for viscous feeds, concentrated solutions, and materials that can degrade under prolonged heating.

Its purpose is controlled evaporation, not simple boiling. Operators adjust jacket temperature, rotor speed, feed rate, and vacuum pressure to balance throughput and product quality. A deeper vacuum can reduce boiling temperature, while faster wiping improves film distribution. However, every feed behaves differently. The ideal settings are not universal. Poor distribution may create dry patches, fouling, or uneven concentration. Regular inspection of seals, blades, and the heated surface remains essential.

Tips: Start with a conservative feed rate and increase it gradually. Watch pressure, outlet temperature, motor load, and product appearance together. Cleaning matters. Even a thin deposit can reduce heat transfer and change residence time. Keep reliable process records, because small changes in viscosity or solids content can affect performance. One detail is often overlooked: laboratory trials may not predict full-scale behavior perfectly. Scale-up requires careful testing, not assumptions.

What Is a Wiped Film Evaporator? — Definition, Purpose, and Operating Principle

Aspect Description Typical or Key Data
Definition A wiped film evaporator is a thin-film heat-transfer device in which a rotating rotor spreads a liquid feed into a continuously renewed film on a heated cylindrical wall. Continuous operation; usually configured for vacuum service when processing heat-sensitive materials.
Primary Purpose It removes volatile components, such as solvents or moisture, from a less-volatile product while limiting thermal exposure and residence time. Common objectives: concentration, solvent recovery, devolatilization, drying, and purification.
Operating Principle Feed enters near the top of the heated body. Rotor blades distribute it across the wall, create turbulence, and continuously renew the liquid film. Volatile material vaporizes and exits through a vapor outlet, while the concentrated residue flows downward. Heat transfer occurs through the wall; mass transfer occurs from the liquid film to the vapor phase.
Main Process Zones The equipment generally includes a feed-distribution zone, an evaporation zone, a vapor-separation area, and a bottom discharge zone. The exact geometry depends on feed viscosity, evaporation duty, pressure, and required throughput.
Rotor Function The rotor promotes uniform wetting, reduces stagnant areas, improves heat transfer, and helps prevent local overheating or excessive fouling. Rotor speed is design-dependent; many systems operate from several tens to several hundred revolutions per minute.
Film Characteristics The liquid layer is intentionally thin and continuously renewed. A thinner, well-mixed film generally reduces diffusion distance and improves evaporation response. Film thickness varies with viscosity, feed rate, rotor design, clearance, and operating speed; it is not a universal fixed value.
Pressure Vacuum lowers the boiling temperature of the volatile component, making it possible to evaporate materials at lower wall and product temperatures. Operating pressure may range from near-atmospheric conditions to deep vacuum, depending on the product and process objective.
Temperature Range The heating-medium and product temperatures are selected according to boiling point, viscosity, thermal stability, and allowable product quality limits. There is no universal temperature range; many applications use hot water, thermal oil, or steam as the heating medium.
Residence Time Material typically travels through the evaporating section quickly, which helps reduce thermal degradation compared with long-hold-up evaporation methods. Often measured in seconds to a few minutes, depending on equipment length, feed rate, viscosity, and rotor configuration.
Suitable Feed Materials The technology is suitable for many viscous, concentrated, heat-sensitive, fouling-prone, or high-boiling liquid feeds. Examples include solvent-containing products, polymers, oils, resins, extracts, and concentrated solutions.
Key Advantages The continuously renewed film provides efficient heat and mass transfer, low liquid hold-up, short residence time, and good control of product exposure to heat. Advantages are especially valuable for heat-sensitive or viscosity-increasing products.
Process Limitations Performance can be affected by inadequate wall wetting, excessive solids, unsuitable viscosity, rotor wear, poor vacuum control, or deposits on the heat-transfer surface. Feed conditioning and correct selection of rotor clearance, materials, and operating conditions are important.
Vapor–Liquid Separation The vapor outlet removes evaporated components, while a separator or demister may be used to limit entrainment of liquid droplets into downstream equipment. Downstream equipment may include condensers, receivers, vacuum systems, and solvent-recovery units.
Product Discharge The less-volatile concentrate moves downward along the heated wall and leaves through a bottom outlet or discharge device. Discharge design must match product viscosity, solids content, pressure, and required flow stability.
Wiped Film vs. Falling Film A wiped film evaporator uses mechanical rotor action to create and renew the film, whereas a falling-film evaporator relies mainly on gravity to distribute liquid over the heating surface. Mechanical wiping generally provides better handling of higher-viscosity or more fouling-prone feeds.
Performance Indicators Important measures include evaporation rate, concentrate flow rate, vapor composition, product temperature, pressure stability, energy use, and product quality. Actual capacity depends on heat-transfer area, latent heat, feed properties, pressure, temperature difference, and allowable fouling.
Typical Applications Wiped film evaporation is used where conventional evaporators may cause excessive residence time, poor heat transfer, or rapid fouling. Applications include concentration, drying, stripping, solvent removal, purification, and recovery of volatile components.
Note: Operating values are application-dependent. Final equipment sizing and operating conditions should be established from feed testing, heat and mass balances, and product-quality requirements.

Thin-Film Formation at 0.1–3 mm Thickness Under Controlled Wiping

What Is a Wiped-Film Evaporator?

A wiped-film evaporator spreads liquid across a heated cylindrical wall. A rotating shaft carries wipers that renew the surface continuously. This action forms a controlled film between 0.1 and 3 mm thick. The thin layer shortens the path for heat and vapor movement. It can also reduce residence time, which matters for heat-sensitive oils, solvents, and concentrated extracts. Operating pressure, wall temperature, rotor speed, feed rate, and viscosity must remain coordinated. Small changes can create dry patches or uneven evaporation.

The U.S. Department of Energy’s Industrial Decarbonization Roadmap (2022) reports that process heating represents about 51% of energy use in U.S. manufacturing. Thin-film evaporation cannot remove that burden, but it can improve thermal control by avoiding unnecessary liquid inventory. In practical operation, technicians should watch wall temperature, vacuum stability, motor load, and product color. A stable film often looks simple. It rarely is.

A 0.1 mm film is not automatically better than a 3 mm film. Very thin layers may lose continuity when viscosity changes. Very thick layers may increase heat exposure and slow vapor release. That trade-off deserves testing with the actual feedstock. Lab trials should measure viscosity, boiling behavior, fouling, and final moisture. My view is cautious: equipment ratings provide a starting point, not a guaranteed result. A reliable design connects the specified film thickness with measured operating data, not only catalogue assumptions.

Core Components: Heated Shells, Rotors, Wipers, and Vacuum Systems

What Is a Pope Wiped Film Evaporator?

A Pope wiped film evaporator is a thin-film processing unit designed for gentle, controlled evaporation. Feed enters a heated cylindrical shell and spreads across its inner wall. A rotating shaft carries wipers that continually renew the liquid film. This action improves heat transfer and reduces stagnant zones. The shell supplies thermal energy, while the rotor controls film movement and residence time. In practice, residence time can be only a few seconds. That matters for heat-sensitive materials.

The vacuum system lowers boiling temperatures and supports faster vapor removal. Vapors leave through a dedicated outlet and move toward a condenser or downstream separator. Wiper clearance, rotor speed, shell temperature, and vacuum pressure must work together. A small pressure change can alter product quality. Uneven heating can create dark deposits near the lower shell. That is often overlooked. Operators should monitor pressure, motor load, feed rate, and temperature trends instead of trusting one reading. The equipment looks simple. Its process behavior is not.

Tips: Keep the feed steady and well-filtered. Inspect wipers for wear before performance declines. Start with moderate heat and vacuum settings, then adjust gradually. Do not assume a higher rotor speed always improves evaporation. It may increase foaming, splashing, or mechanical stress. Record operating data during each run. Those notes often reveal problems before visual inspection does. A practical weakness is that cleaning validation can become difficult when residue collects behind seals or in discharge areas.

Process Performance: 1–100 mbar Vacuum and 1–30 s Residence Time

What Is a Wiped Film Evaporator?

A wiped film evaporator spreads liquid across a heated vertical surface. Rotating blades maintain a thin, continuously renewed film. Under 1–100 mbar vacuum, boiling temperatures can fall sharply. Water boils near 7°C at 10 mbar and about 46°C at 100 mbar. Actual values depend on composition, pressure stability, and dissolved solids.

Residence time is the critical performance detail. A well-designed unit can expose material for roughly 1–30 seconds. This short path can reduce thermal damage, color formation, and unwanted reactions. It also supports rapid separation when feed rates remain stable. The U.S. Department of Energy reports that process heating represents about 51% of industrial energy use. Lower boiling temperatures may reduce heat demand, but vacuum systems still consume power. The European Commission’s Industrial Emissions Portal also emphasizes measurement, control, and energy management for efficient thermal processing.

In practice, operators should verify residence time with mass balance, temperature mapping, and feed sampling. A laboratory result may not survive scale-up. Viscosity changes can create dry patches or uneven film coverage. That weakness is easy to underestimate. I would also question any claim based only on outlet temperature. Product quality depends on wall temperature, vapor load, blade speed, and pressure fluctuations. The IEA’s Energy Technology Perspectives 2023 estimates industry uses about 37% of global final energy, so small process gains can matter. Still, each feed requires its own validation window.

Wiped Film Evaporator Process Operating Window

The chart summarizes the process-performance range of a wiped film evaporator: an absolute vacuum pressure of 1–100 mbar and a residence time of 1–30 seconds. Actual operating conditions depend on feed properties, evaporation duty, temperature, and equipment design.

Industrial Applications, Material Selection, and Scale-Up by Heating Area

What Is a Pope Wiped Film Evaporator?

A Pope wiped film evaporator is a thin-film unit for concentrating heat-sensitive, viscous, or easily fouled liquids. A rotating wiper spreads feed across a heated vertical wall. The film may be only fractions of a millimeter thick. Short residence time helps protect polymers, oils, extracts, and pharmaceutical intermediates from prolonged heating. Vacuum operation lowers boiling temperature and supports solvent recovery. The U.S. Department of Energy reports that process heating represents about 51% of manufacturing energy use in its Industrial Decarbonization Roadmap (2022). Better heat transfer can therefore affect both product quality and plant emissions.

Material selection depends on chemistry, temperature, vacuum level, and cleaning practice. Stainless steel suits many aqueous products, but chloride-rich feeds may require higher-alloy construction. Seal materials must tolerate the solvent and repeated thermal cycling. Small details matter. A polished surface reduces hold-up and cleaning risk. Surface finish alone does not solve poor distribution or dead zones.

Scale-up should begin with heating area, not vessel volume. Engineers commonly estimate duty with Q = U × A × ΔT, then verify residence time, rotor loading, and vapor capacity. More area can raise throughput, but it may also increase pressure drop and maintenance exposure. Pilot data remains essential. A neat spreadsheet can still mislead. The European Commission’s BAT reference documents emphasize energy efficiency and emissions control, yet real performance depends on feed variability and fouling. Those uncertainties deserve testing before specifying a larger evaporator.
